2.4/5.8GHz 14dBi 17dBi WiFi WLAN MIMO Sector Antenna

Dual band sector antenna containing one 14 dBi 2.4 GHz antenna in horizontal polarization and one 17 dBi 5.8 GHz antenna in vertical polarization.

The TDS-2458-17 is a high performance dual-band panel antenna. Its dual-band design makes it suitable for applications in the 2.4GHz (2400-2500 MHz) and 5.8 GHz (5725-5850 MHz) band which and eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of wireless applications.

Features

• Dual band: 2.4 GHz and 5.8 GHz
• Dual feed via (2) Integral N-Female Connectors

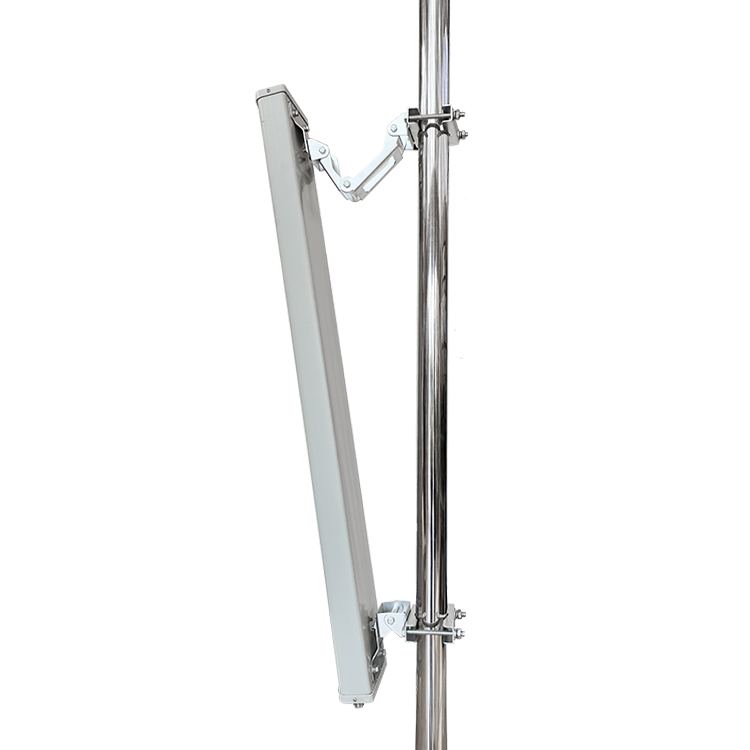

• Includes mast mounting hardware
• All weather operation

Application

• Homeland Security and Public Safety Services: Fire, Police, Security
• 802.11a, 802.11b, 802.11g, 802.11n and 802.11ac access points and routers
• WiFi Systems
• WiMAX Technology
• Wireless Internet Provider "cell" sites​

Electrical Specifications

Mechanical Specifications

RF Antenna Patterns
