Long range 4.9-6.5GHz 34dBi 720mm WiFi Wlan mimo dish antenna

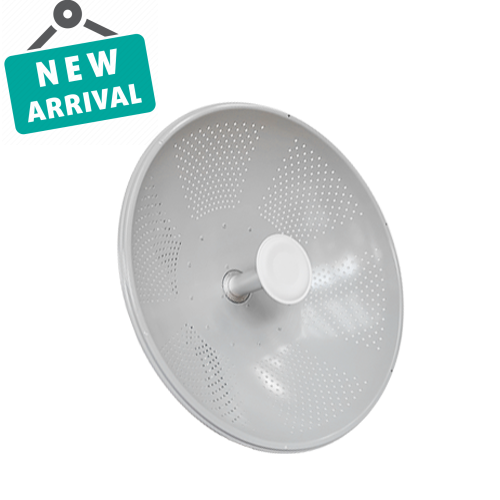

New Arrival TDD-4965-34 is a ultra performance wideband dual polarized solid dish antenna with ultra electrical performance and mechanical stability, the parabolic dish antenna can be used in a wide variety of 4.9GHz and 6.5 GHz range (4.9/5.1/5.3/5.4/5.8/6.5GHz) wireless applications.

Applications

• 5 GHz ISM and UNII band
• 802.11n MIMO and WiMax
• Long-range applications
• Point-to-point
• Point-to-multipoint
• Backhaul/client antenna

Features

• Dual polarity feed
• Aluminum reflector dish
• UV stable light gray polymer finish
• All weather operation
• Includes tilt and swivel mast mount kit

Electrical Specifications

Mechanical Specifications

RF Antenna Patterns

Compare With Current Exist Dish Antenna In The Market

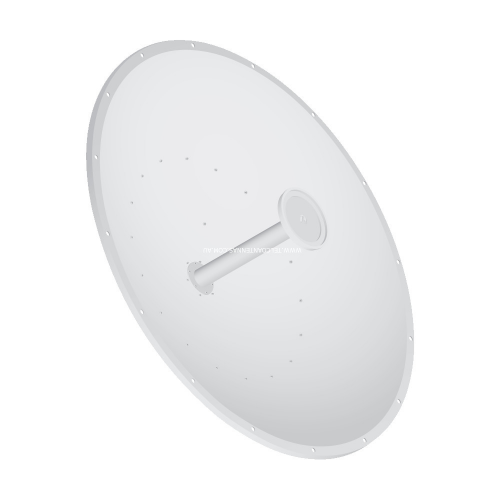

Item	Rocket Dish	Current exist dish	XJS New Design dish
Freq.	4.9-5.8 GHz	5.1-5.8 GHz	4.9-6.5 GHz
Gain	34dBi	32dBi	34dBi
Dimension	Φ1050mm	Φ900mm	Φ720mm
Weight	13kg	12kg	7kg
F/B Ratio	≥42db	≥38db	≥45db

XJS NEW Design Dish Antenna Advantage:

• Compact in size
• Ultra high gain
• Amazing F/B Ratio

Product Details

Package Included

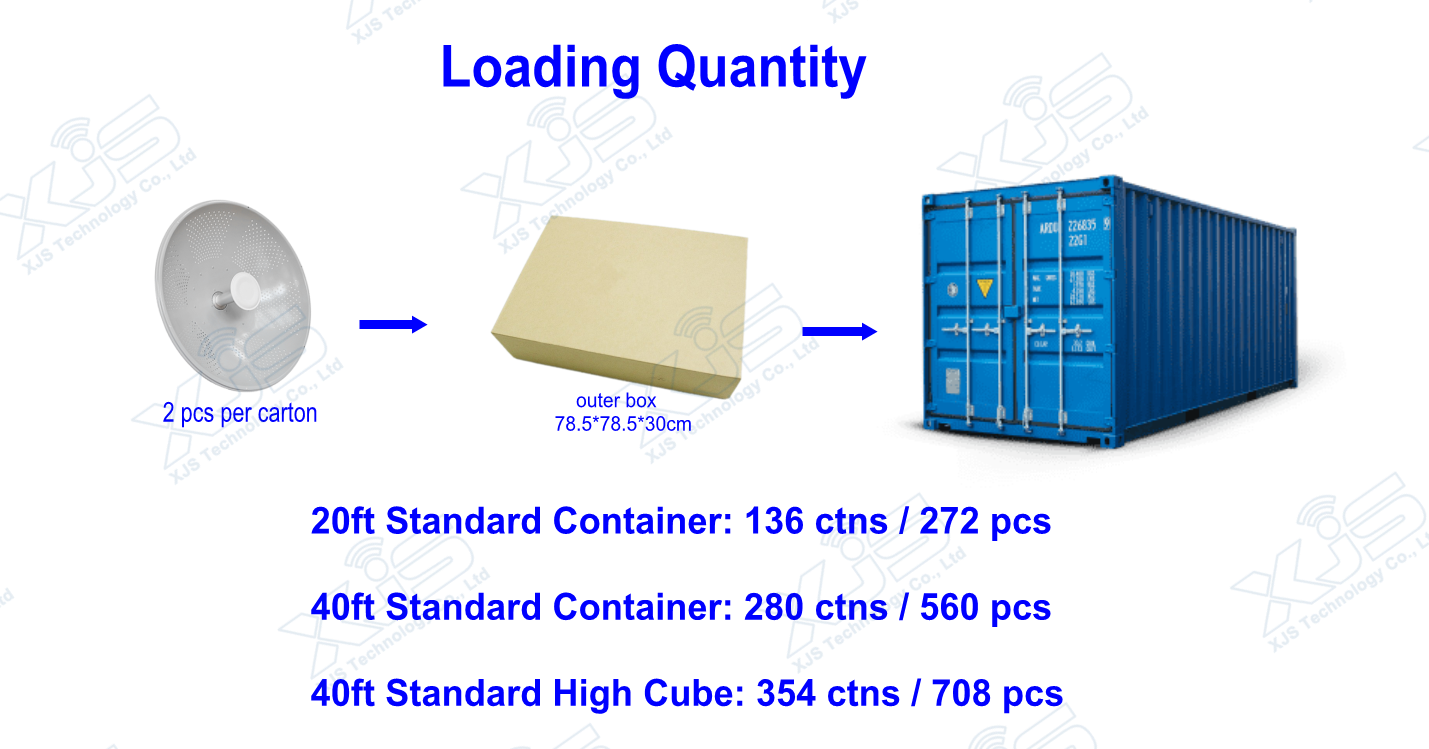

Packing

• 1 pcs or 2 pcs in one carton is available.
• Compact in packing size, save your delivery cost
• Foam packing, strong protection during delivery.

Installation Guide

Xiang Jia Sheng Technology Co., Ltd. established in 2005 with a total area of more than 5,000 ㎡ is an ISO 9001:2008 certified antenna manufacturing company. The production base and technology headquarters are located in the southern coastal area of China, which makes our output stable, quality guaranteed, and convenient for circulation around the world.

Currently XJS Technology has 5 flexible production lines, with extensive and in-depth products in 5G, 4G LTE, WiFi, WIMAX, 3G, GSM, LoRa, RFID and wireless LAN frequency bands.

We welcome OEM/ODM orders, and you can request a customized design for your project.

XJS Technology has an experienced and innovative R&D team. We have obtained a large number of patents through independent research and development projects. In addition, we have added more user-friendly detailed designs to the use of products.

Before officially mass-producing, XJS Technology will conduct a large number of product tests to ensure that the product can play an ideal effect in actual use. Over the years, the products developed by XJS Technology independently have gained a good reputation, which proves that our R&D management is quite successful.

In the future, XJS Technology will continue to produce innovative, high-quality, and practical products. Strive to become a first-class provider of communications solutions in the world.
