4G Lte 698-2700MHz 7dBi Wall Indoor Panel Antenna For Communication

This flat panel high gain directional antenna is ideal for applications where ceiling access is not possible, or expanded coverage is needed. It is designed to mount on a wall at one side of the area where you need to provide improved reception. Ideal for home applications; can be placed in a closet for discreet coverage.

Features:

• Directional antenna
• Built-In ground plane
• Mounting hardware included
• Designed for fixed (building amplifier) installations
• Provides a cost-effective solution for high volume deployments and multiple in-building systems
• Unobtrusive - low profile blends easily with internal environment for unobtrusive appearance
• Convenient and simple to install
• supports 2G, 3G, Next-G and 4G LTE

Electrical Specifications

Mechanical Specifications

RF Antenna Patterns

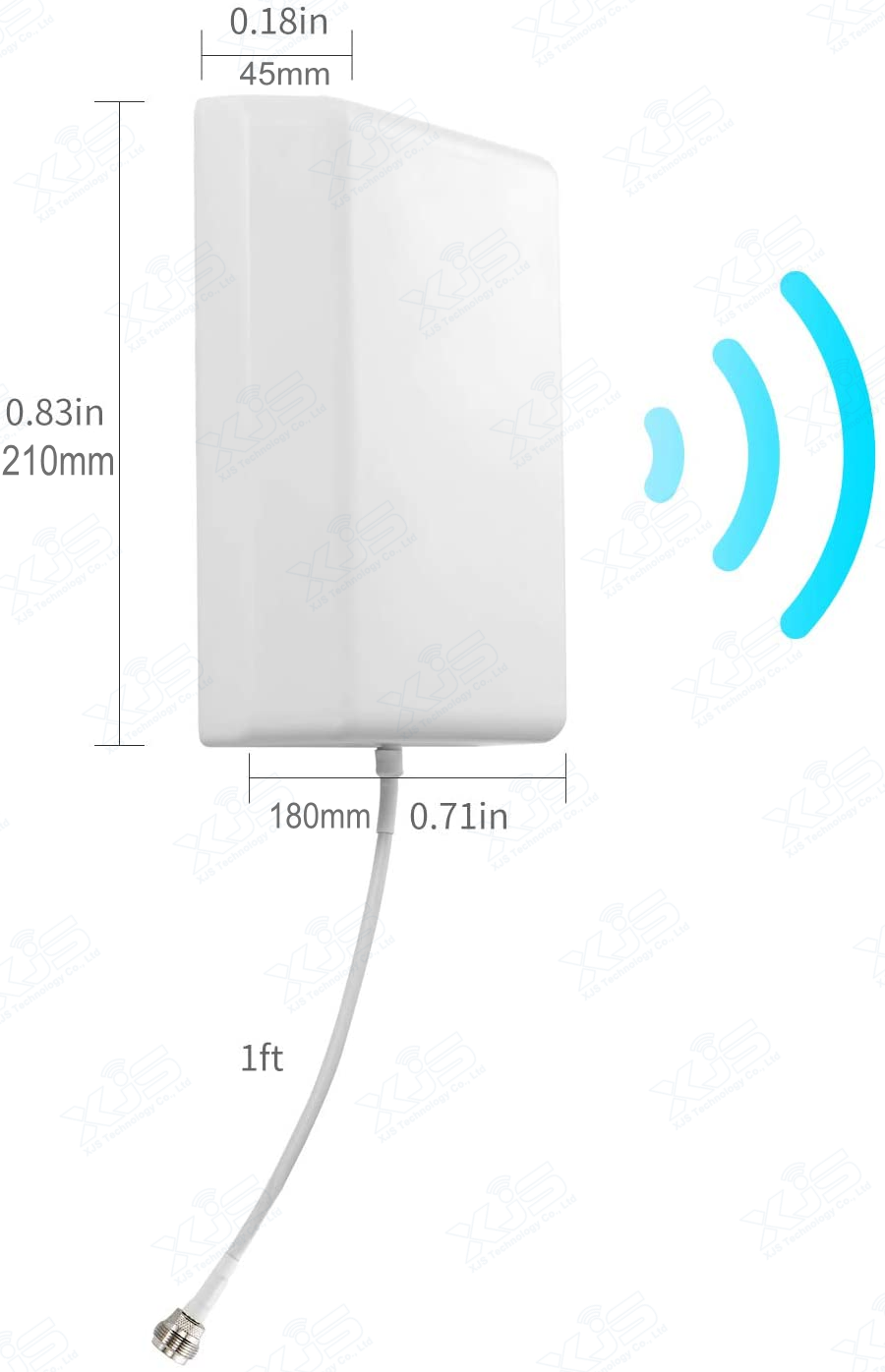

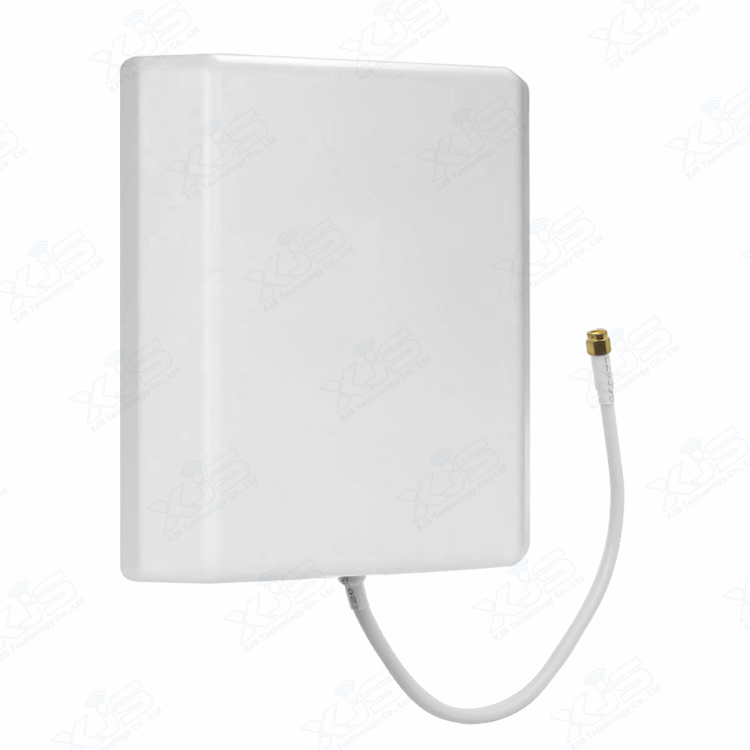

It is a roughly square box of 210mm x 180mm and 45mm thick. It is mainly made from aluminium with a durable white ABS plastic cover which is UV resistant.

Included in the package is an aluminium bracket for mounting the antenna flat against a wall.

This type of antenna is often favoured because of it's no-fuss mounting, compact size, and very reasonable gain. With Optus rolling out its 900MHz broadband network, it’s 4G network on both 1800MHz and 2300MHz, and Vodafone deploying its brand new 850MHz network, how can you be sure what network you're connecting to? With this antenna you can leave those worries behind and know that this antenna is going to be 100% compatible.

Panel antennas are usually installed on walls, above head height. If they are installed more then 1m above head height, then tilt the antenna downwards, a little, to focus the main energy of the antenna down towards phone users.

With an ultra wide receiving angle this antenna is ideal for city and suburban areas where there are often a series of cell towers in a small area, and also areas affected by hills and valleys.
