Directional 2G 3G 4G LTE GSM WiFi RFID 698-2700MHz 11dBi LPDA Antenna For Communication

This antenna is high performance wide band log periodic antenna designed to operate from 698-960 MHz and 1710-2700 MHz. and it is used to distribute Cellular and WiFi signals throughout a area. It is also suited for directional and multipoint IEEE 802.11b/g/n wireless LANs, public wireless hotspot applications, RFID systems and other systems operating in the 2.4GHz band.

Applications:
· DAS (Distributed Antenna Systems)
· Cellular networks
· Public safety
· IEEE 802.11b/g WiFi applications
· LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M applications

Electrical Specifications

Mechanical Specifications

RF Antenna Patterns

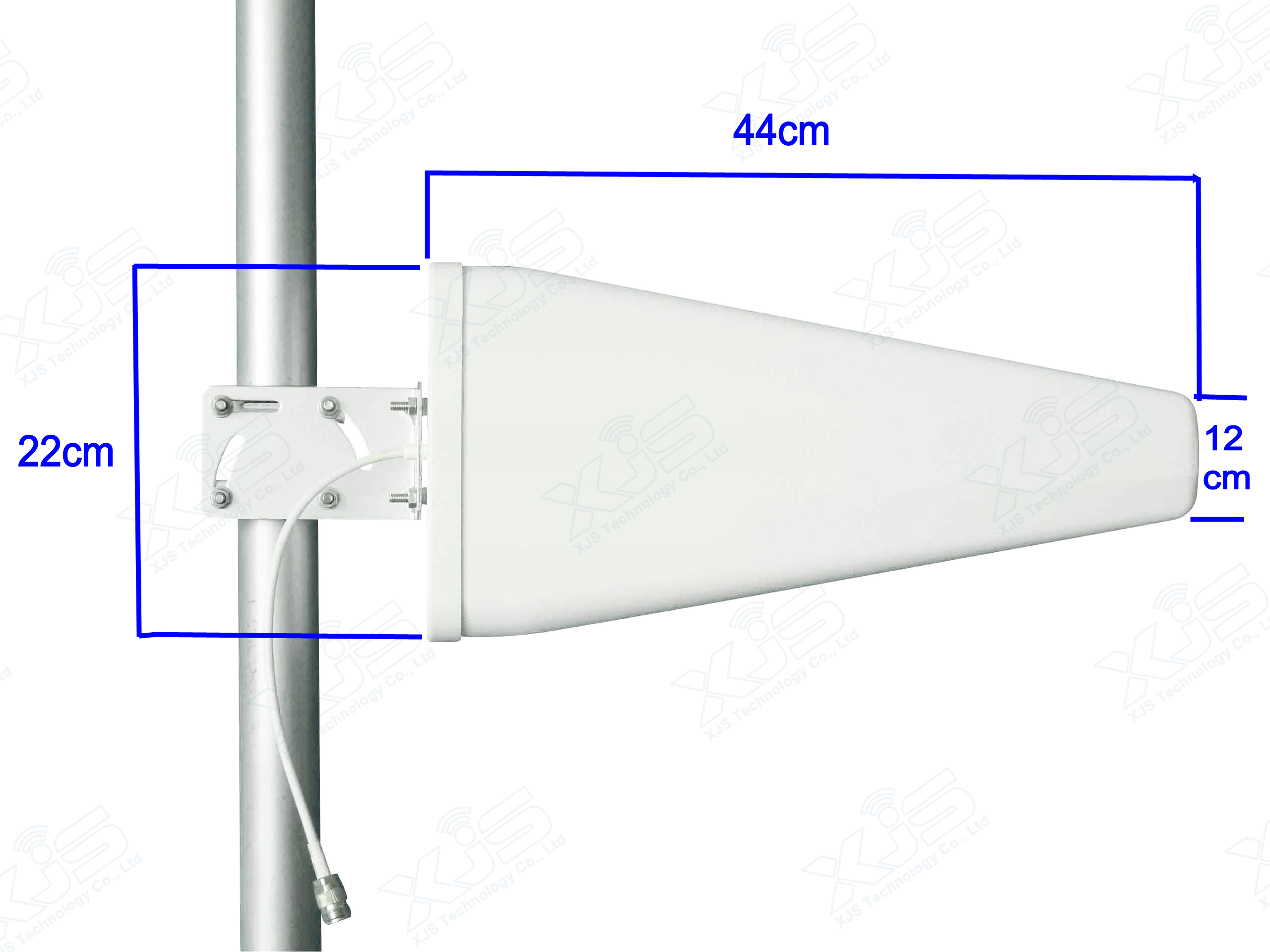

It is a roughly square box of 440mm x 220mm and 65mm thick. It is mainly made with a durable white ABS plastic cover which is UV resistant.

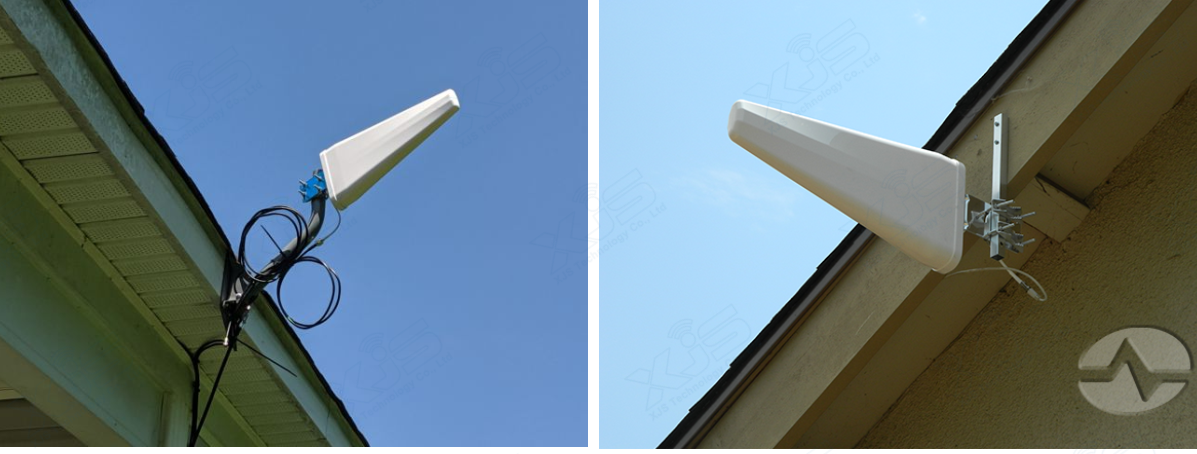

It can be located outdoors as it is not affected by rain. Included in the package is an aluminium bracket for mounting the antenna with the pole

this is a high performance wide band log periodic antenna designed to operate from 698-960 MHz and 1710-2700 MHz. This Wideband design eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of wireless applications where wide coverage is desired.

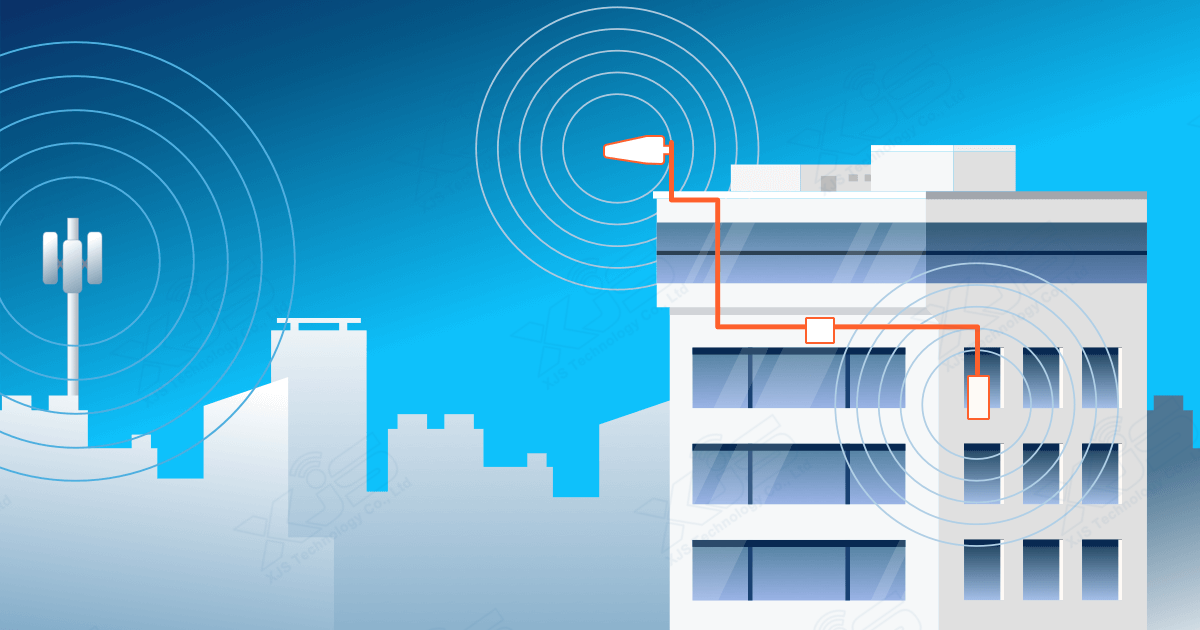

It is ideal for Distributed Antenna Systems, DAS. A DAS system is used to distribute Cellular and WiFi signals throughout a building or area. It is also suited for directional and multipoint IEEE 802.11b/g/n wireless LANs, public wireless hotspot applications and other systems operating in the 2.4GHz ISM band.

Xiang Jia Sheng Technology Co., Ltd. established in 2005 with a total area of more than 5,000 ㎡ is an ISO 9001:2008 certified antenna manufacturing company. The production base and technology headquarters are located in the southern coastal area of China, which makes our output stable, quality guaranteed, and convenient for circulation around the world.

Currently XJS Technology has 5 flexible production lines, with extensive and in-depth products in 5G, 4G LTE, WiFi, WIMAX, 3G, GSM, LoRa, RFID and wireless LAN frequency bands.

We welcome OEM/ODM orders, and you can request a customized design for your project.

XJS Technology has an experienced and innovative R&D team. We have obtained a large number of patents through independent research and development projects. In addition, we have added more user-friendly detailed designs to the use of products.

Before officially mass-producing, XJS Technology will conduct a large number of product tests to ensure that the product can play an ideal effect in actual use. Over the years, the products developed by XJS Technology independently have gained a good reputation, which proves that our R&D management is quite successful.

In the future, XJS Technology will continue to produce innovative, high-quality, and practical products. Strive to become a first-class provider of communications solutions in the world.
