2.4G 14dBi panel antenna

high performance directional flat patch WiFi antennas are suitable for indoor and outdoor applications in the 2.4GHz ISM band, including IEEE 802.11b, 802.11g and 802.11n wireless LANs, and public wireless hotspots. This WiFi antenna is lightweight and features an aesthetic UV-stable, UL flame rated white plastic radome which can also be painted to match the room or building structure. It can be installed for horizontal or vertical polarization.

Features

• Can be installed for either vertical or horizontal polarization
• Durable UV-stable, UL flame rated radome
• Directional antenna applications
• 2.4 GHz ISM Band
• IEEE 802.11b, 802.11g, 802.11n (Pre-N, Draft-N) Wireless LAN Applications
• WiFi & Wireless Video System

Electrical Specifications

Mechanical Specifications

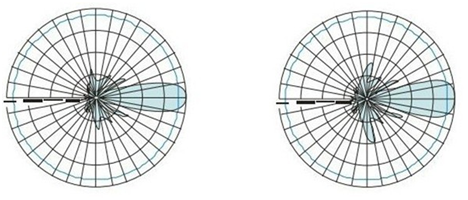

RF Antenna Patterns

H plane V plane

Package Content

It is a roughly square box of 210mm x 180mm and 45mm thick. It is mainly made from aluminium with a durable white ABS plastic cover which is UV resistant.

Due to it's high gain, the Panel antenna sends and receives through a very narrow signal of just 32 degrees. At 14 dBi it has a maximum range of up to 3 miles. Clear LOS required.
