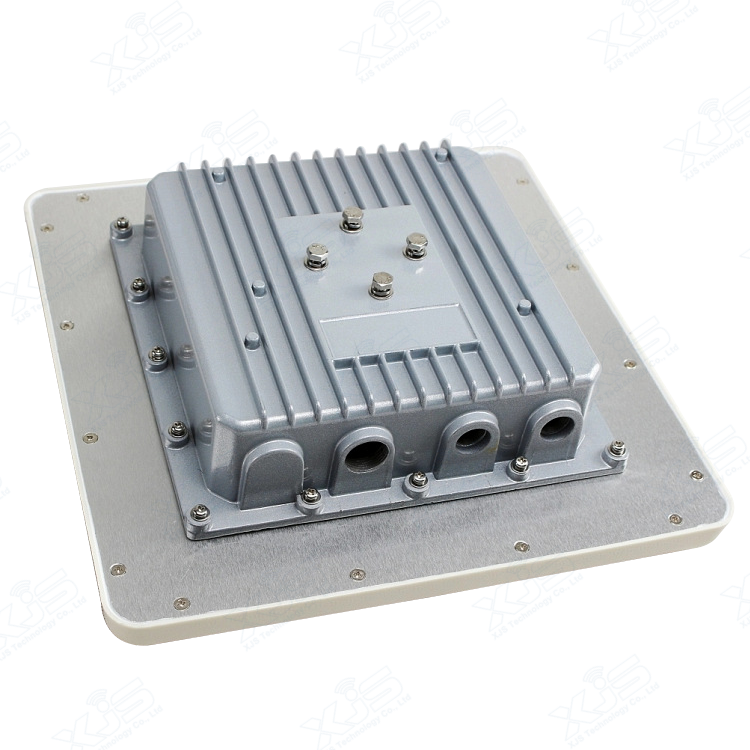

5.8GHz 20dBi panel antenna with radio enclosure

The TDP-5158-20 is a directional antenna for increased performance and reduced interference, operating on the 5 GHz frequency. TDP-5158-20 can be mounted either indoors or outdoors. The antenna’s gain value is 20dBi, and if mounted outdoors the weatherproof housing can withstand temperatures from minus 30°C up to 60°C, as well as rain, sNAw, dust and other harsh conditions

• Provides 20dBi directional operation
• Directional operation provides extended point-to-point coverage For IEEE 802.11a/n/ac Wireless applications in 5 GHz frequency range
• Low wind loading
• -30°C to 60°C operating temperature range

• 5.1- 5.8 GHz Band Applications
• IEEE 802.11a Wireless LAN
• UNII and ISM applications
• WiMAX Technology

Electrical Specifications

Mechanical Specifications

It is a roughly square box of 305mm x 305mm and 30mm thick. It is mainly made from aluminium with a durable white ABS plastic cover which is UV resistant.
