    4G LTE Dome Antenna 5G Communication Antenna 5dBi Indoor Ceiling Mount Antenna

    Ask Lasest Price
    Brand Name : XJS
    Model Number : TQC-0642-5
    Price : USD+4-6+PCS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50000+PCS+month
    Certification : ROHS CE
    • Product Details
    • Company Profile

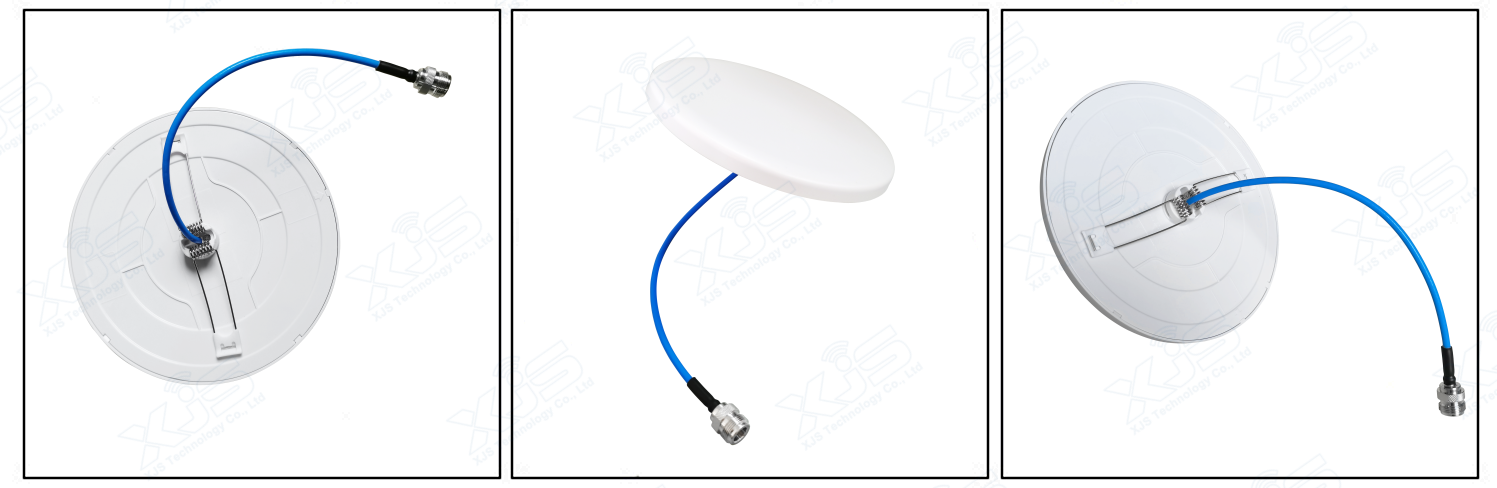

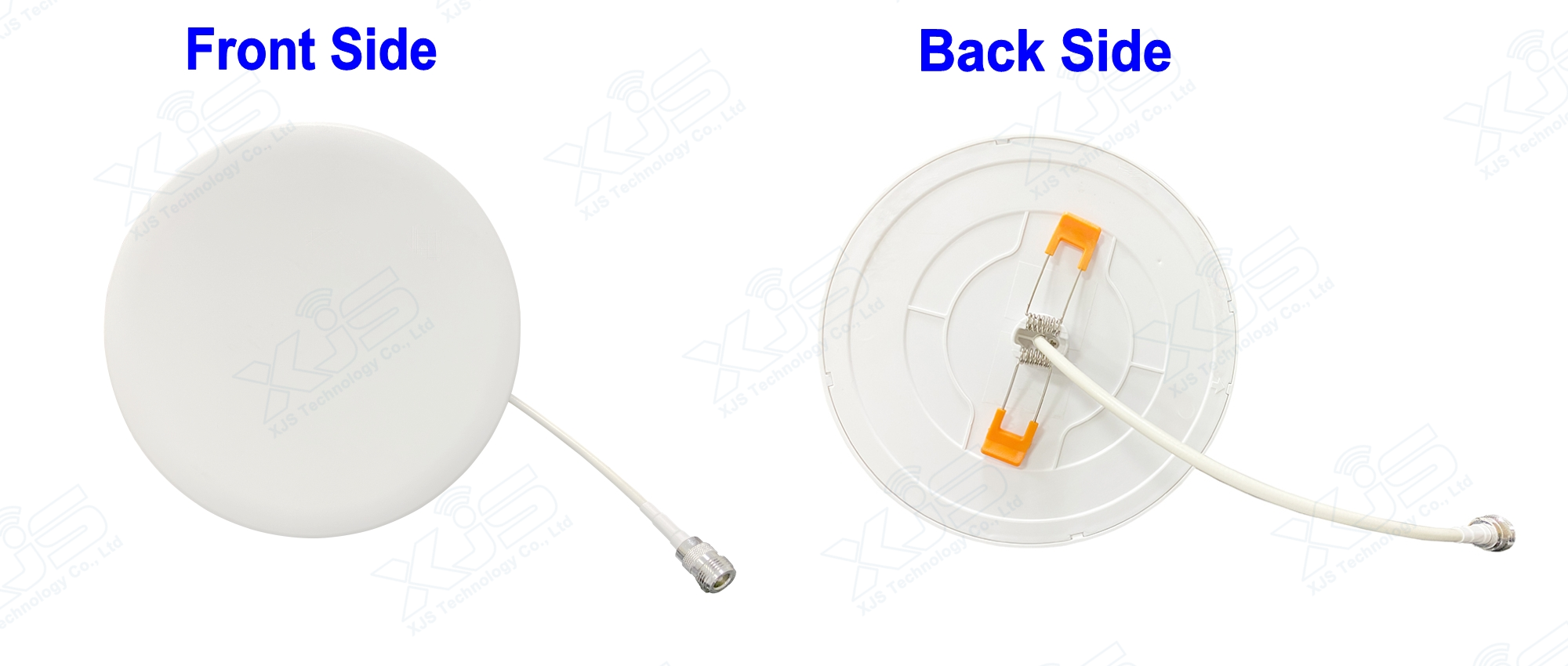

    4G LTE Dome Antenna 5G Communication Antenna 5dBi Indoor Ceiling Mount Antenna

    5G DAS indoor 698-4200 MHz 5dBi ceiling antenna for communcation
    This is a high performance ceiling mount omnidirectional antenna specifically designed for in-building wireless networks such as DAS (Distributed Antenna Systems)
    It has 5dBi gain and can be used to distribute Cellular and WiFi signals throughout a building or area. It operates from 698 to 4200 MHz which is ideal for 5G, LTE, CDMA, LPWAN/IoT/M2M applications including LoRA, LTE-M, and NB-IOT.
    Application
    1. Indoor distribution of 5G, LTE, GSM/CDMA
    2. In-building public or private networks
    3. LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M applications
    4. DAS (Distributed Antenna Systems)
    5. Discrete Ceiling Mounts

    Electrical Specifications

    Frequency Range698-4200
    Gain (dBi)5 dBi
    Horizontal Beamwidth360°
    Vertical Beamwidth60°
    VSWR<1.5
    PolarizationVertical
    Impedance50Ω

    Mechanical Specifications

    ConnectorCustomized
    DimensionsΦ280mm*33mm
    Weight (Kg)0.4 kg
    Lightning ProtectionDc Ground


    It is designed specifically for in-building operation and is ideal for use in large open areas such as indoor courtyards, indoor sporting venues, convention centers and shopping malls. The included mounting bracket and hardware makes this antenna very easy to install.

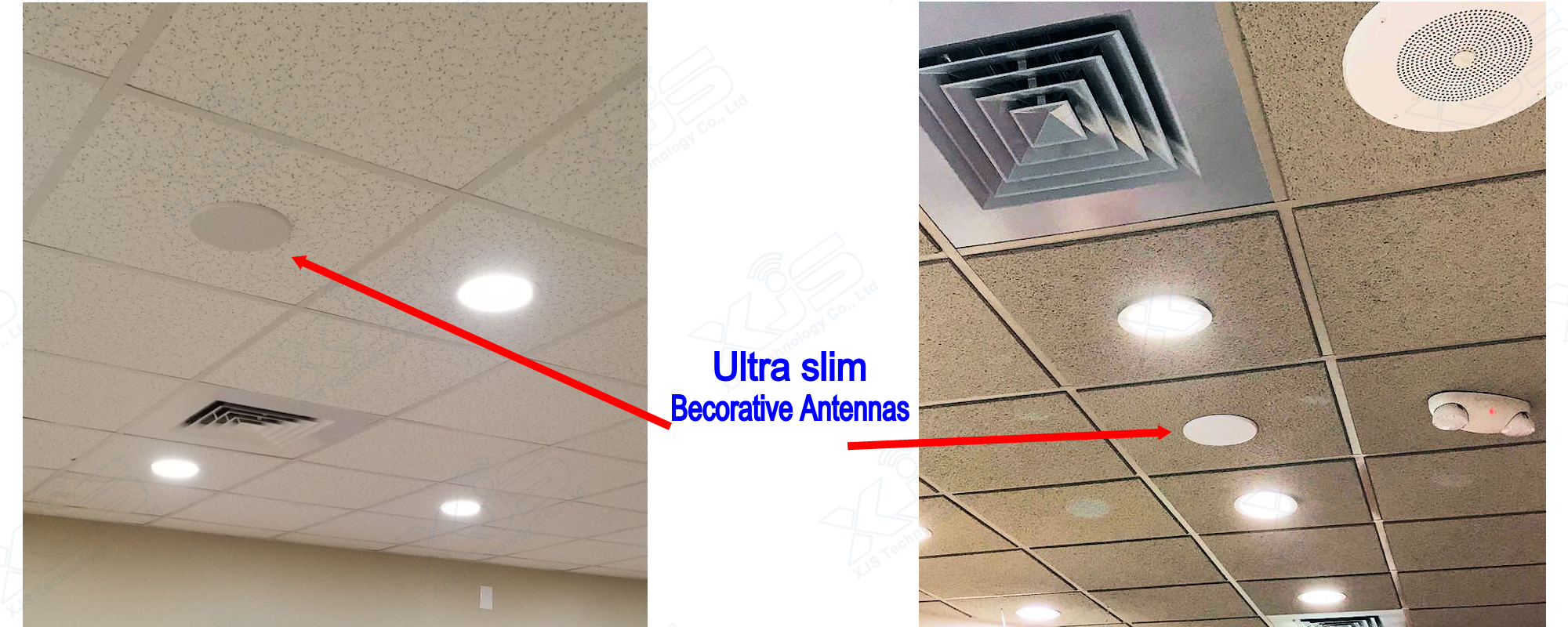

    Ultra Silm Becorative antennas



    Packing:

    • Packed in a strong paperboard material,
    • 2pcs in one inner box, save volume and delivery cost
    • Installation guide printed in the surface, easy install

    Quality 4G LTE Dome Antenna 5G Communication Antenna 5dBi Indoor Ceiling Mount Antenna for sale
