Directional 2G 3G 4G LTE GSM WiFi RFID 698-2700MHz LPDA Antenna For Communication

This antenna is high performance wide band log periodic antenna designed to operate from 698-960 MHz and 1710-2700 MHz. and it is used to distribute Cellular and WiFi signals throughout a area. It is also suited for directional and multipoint IEEE 802.11b/g/n wireless LANs, public wireless hotspot applications, RFID systems and other systems operating in the 2.4GHz band.

Applications:
· DAS (Distributed Antenna Systems)
· Cellular networks
· Public safety
· IEEE 802.11b/g WiFi applications
· LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M applications

Electrical Specifications

Mechanical Specifications

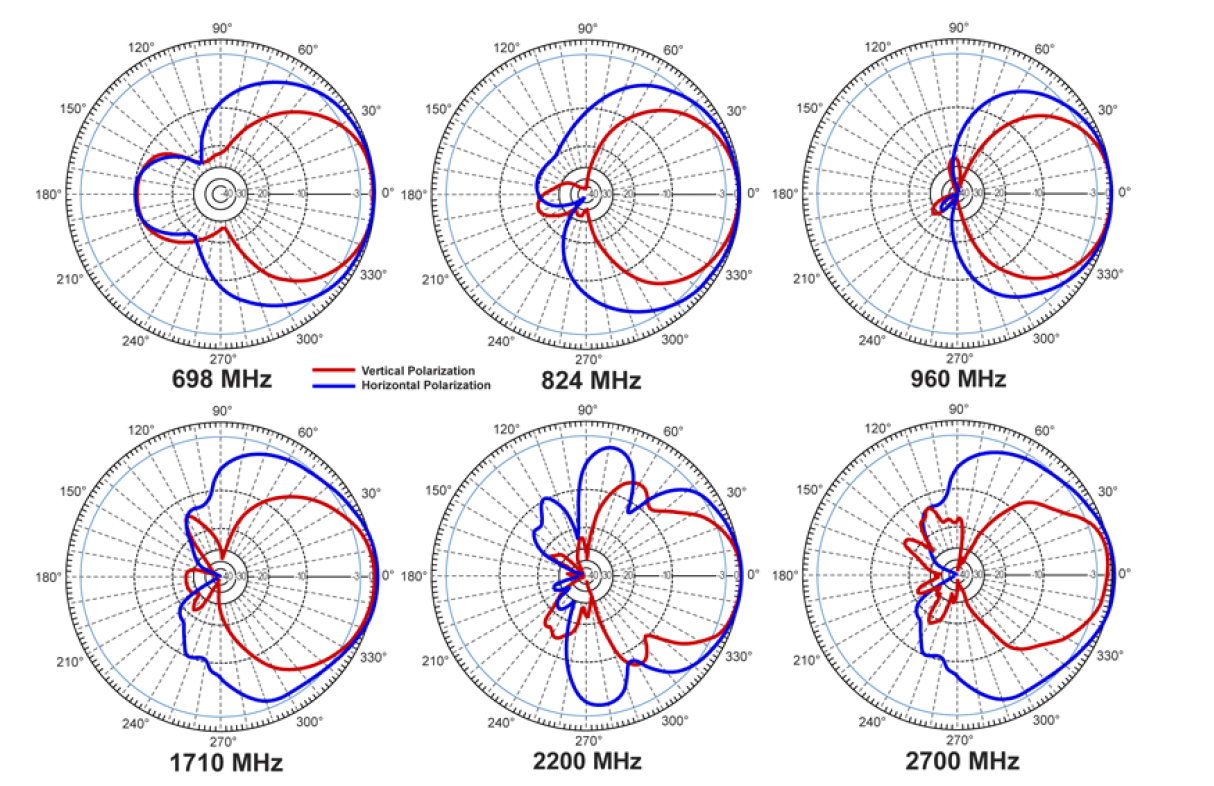

RF Antenna Patterns

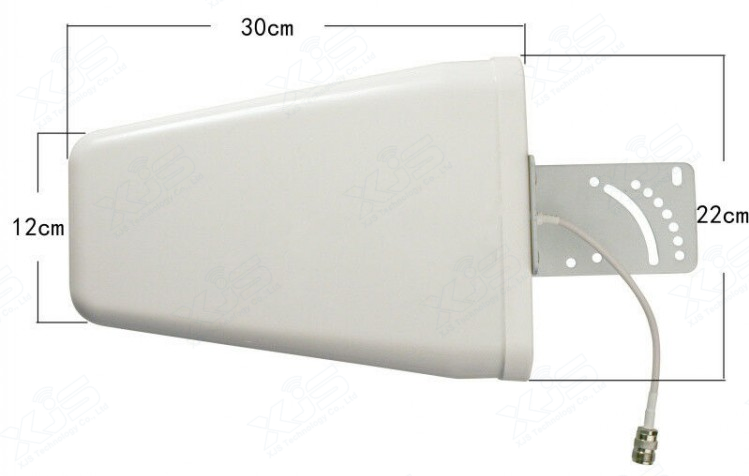

It is a roughly square box of 293mm x 210mm and 65mm thick. It is mainly made with a durable white ABS plastic cover which is UV resistant.

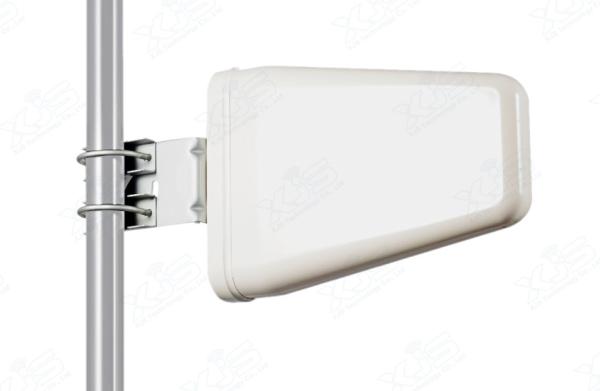

It can be located outdoors as it is not affected by rain. Included in the package is an aluminium bracket for mounting the antenna with the pole

this is a high performance wide band log periodic antenna designed to operate from 698-960 MHz and 1710-2700 MHz. This Wideband design eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of wireless applications where wide coverage is desired.

It is ideal for Distributed Antenna Systems, DAS. A DAS system is used to distribute Cellular and WiFi signals throughout a building or area. It is also suited for directional and multipoint IEEE 802.11b/g/n wireless LANs, public wireless hotspot applications and other systems operating in the 2.4GHz ISM band.
